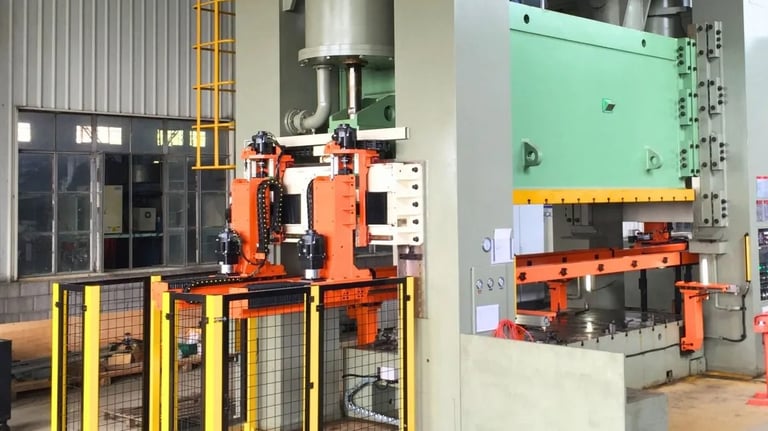

HE3TL Series 3D Linear Transfer System
for Large-Size Press Lines
The Current-Central HE3TL Series 3D Linear Transfer System is a high-performance automation solution tailored for large and medium-sized stamping production lines, dedicated to achieving safe, efficient and precise multi-station sheet metal transfer in full synchronization with press machines. Its core functions cover the entire process of stamping part handling.
Key Functions
Multi-Axis Precision Transfer: Realizes three-axis (X/Y/Z) coordinated motion to complete the pick-up, transfer and drop-off of stamping parts between multi-station presses, ensuring stable and accurate part positioning.
Press Synchronization Control: Seamlessly matches the operating rhythm of mainstream brand presses, enabling high-speed and safe integration of the entire stamping line to maximize production continuity.
Flexible Parameter Adjustment: Supports user-defined setting of position, speed, stroke height and other parameters via a graphic HMI, with recipe memory for one-click product changeover to adapt to different stamping part specifications.
Intelligent Trajectory Optimization: Automatically generates optimal motion curves between pick-up and drop-off points, eliminating complex manual programming and improving transfer efficiency.
Optional Automatic Tooling Change: Equipped with one-touch automatic gripper arm changeover function (optional), drastically reducing die-change time and enhancing production flexibility.
Comprehensive Safety Protection: Integrates multi-layer safety mechanisms including hard stops, software limits, overload protection and anti-drop devices, ensuring safe operation in heavy-load stamping scenarios.
Real-Time Fault Diagnosis: Built-in fault detection system displays error locations and solutions in real time, facilitating quick troubleshooting and minimizing production downtime.
Specification of HE3TL Series 3D Linear Transfer System for Large-Size Press Lines

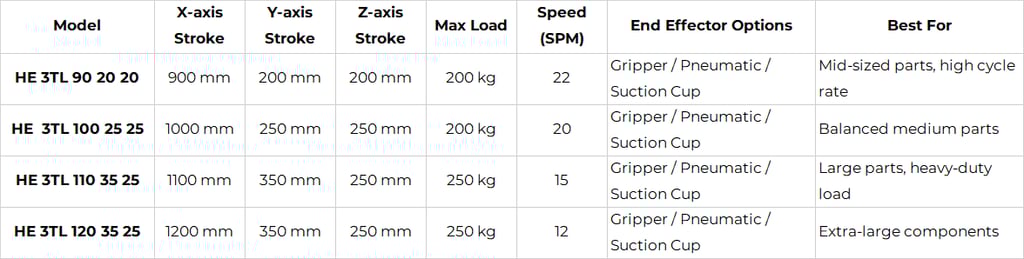

The HE-MACHINE HE3TL Series Three-Axis Transfer System adheres to strict industrial standards, with stable and reliable performance parameters that fully meet the requirements of sheet metal stamping automation production. Key specification parameters are as follows:
SPM Definition: Strokes Per Minute, representing the number of transfer cycles completed per minute.
Customization Support: Accuracy customization and personalized parameter configuration are available upon customer request.
Compatibility: Compatible with most leading press brands in the stamping industry, suitable for single large-tonnage multi-station presses or multi-press tandem lines.
1/4 Core Motion Components
High-Rigidity Mechanical Structure: FEA-optimized cast iron/steel construction, including X/Y/Z axis guide rails, ball screws and transmission shafts, reducing deformation and vibration under heavy load to ensure motion stability.
Premium Drive Units: Equipped with high-performance servomotors and precision reducers, providing smooth motion trajectories with minimal impact to protect molds and ensure consistent part transfer.
Main Parts of Current-Central HE3TL Series 3D Linear Transfer System for Large Size Metal Stamping Lines
The Current-Central HE3TL Series Three-Axis Transfer System consists of core motion components, control systems, execution components and safety components, forming a complete and stable stamping transfer automation system:
2/4 Control System
Graphic HMI: User-friendly human-machine interface with intuitive operation, supporting parameter setting, recipe storage, motion curve display and fault alarm.
Motion Controller: Core control unit for three-axis coordinated motion, press synchronization signal processing and automatic trajectory generation, ensuring precise control of the entire transfer process.
3/4 Execution Components
Tooling Bars & Gripper Arms: Executes the grabbing and releasing of stamping parts, with optional automatic changeover function for quick replacement of different gripper types.
End Effectors: Optional gripper, pneumatic or suction cup types, adaptable to various stamping part shapes and materials (metal sheets, structural parts, etc.).
4/4 Safety & Auxiliary Components
Safety Protection Devices: Hard stops, software limits, overload protection modules, pressure sensors and anti-drop mechanisms, complying with international safety standards.
Diagnosis & Maintenance Modules: Built-in fault detection system, real-time data monitoring and alarm devices, simplifying equipment maintenance and troubleshooting.
1/7 Superior Structural Performance
FEA-optimized high-rigidity cast iron/steel structure minimizes heavy-load deformation and vibration, ensuring long-term stable operation and extending mold service life.
Advantages of Current-Central HE3TL Series 3D Linear Transfer System for Large Size Metal Stamping Lines
Compared with traditional stamping transfer equipment and similar three-axis transfer systems, the HE3TL Series has outstanding core advantages, helping stamping enterprises improve efficiency, reduce costs and enhance product quality:
2/7 High-Efficiency Production Capacity
Seamless press synchronization and high SPM speed (up to 22 SPM) maximize production throughput; modular programming and one-click product changeover reduce non-production time.
3/7 Intelligent & Flexible Operation
Auto-generated motion curves eliminate complex manual programming; optional automatic tooling bar change cuts die-change time by up to 70%, adapting to diversified stamping part production.
4/7 Comprehensive Safety Assurance
Multi-layer safety mechanisms meet international standards, preventing equipment damage and personal injury in heavy-load stamping scenarios, ensuring safe and reliable operation.
5/7 Easy Maintenance & Low Downtime
Built-in real-time fault diagnosis system displays error details and solutions, enabling quick troubleshooting; modular design simplifies component replacement and maintenance.
6/7 Wide Application Adaptability
Covers 4 models with different strokes and loads, suitable for mid-sized to extra-large stamping parts; compatible with various press types and production modes (single press multi-station / multi-press tandem).
7/7 Customizable Solutions
Supports accuracy customization and personalized parameter configuration, tailored to meet the special needs of different stamping production lines.
1/3 Application Scenarios
The HE3TL Series Three-Axis Transfer System is widely used in high-demand stamping production fields, including:
Automotive Industry: Transfer of large structural stampings such as car doors, hoods, chassis reinforcements and body panels.
Appliance Manufacturing: Handling of large sheet metal parts like refrigerator side panels, washing machine shells and air-conditioner covers.
Industrial Equipment & Heavy Components: Transfer of large enclosures, cabinets, agricultural machinery parts and other heavy-duty stamping components.
More About Current-Central HE3TL Series 3D Linear Transfer System for Large-Size Press Lines
2/3 Service Support
Pre-sales: Customized solution design based on customer production line scale, stamping part specifications and production requirements.
In-sales: On-site installation, commissioning and operator training to ensure the system is quickly put into normal operation.
After-sales: Regular equipment inspection, fault maintenance and technical upgrade support, providing long-term stable operation guarantee.
